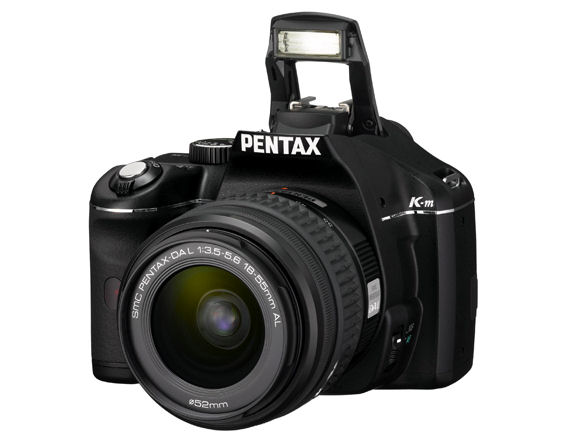

Pentax 의 완전 초급자용 DSLR - Km 모델.

Pentax 에서 완전 초급자를 위한 바디, Km 에 대한 정보가 유출 되었습니다 (정말 유출인지 ..)
작고 가벼움으로 승부를 걸겠다는 거 같은데 ..

특징이라면, 번들렌즈의 마운트 부분이 금속이 아닌 플라스틱 재질로서 무게를 줄였다는 점 입니다.
아마 DAII 18-55mm 에서 마운트 부분만 변경 한 것으로 보입니다.

하지만 ... 뭐랄까요 ? 살짝 슬프네요.
모두다 1:1 FF 를 내놓을때 초급자를 위한 바디라니 ..
게다가 AF 모듈이 4년전에나 나온 *istDL 용 모듈이랍니다 .. ㅠ_ㅠ
반면에 방진방습 바디.
SDM(초음파모터) 지원.

있을건 다 있도록 만들어 놓고 ... Live View 는 없습니다(SONY CCD 사용)

가격이 바디만 한 30만원 한다면 지금 쓰는 *istDS 를 갈아 치울수 있는 매리트가 있다고는 생각합니다만..
시대에 좀 역행적인 느낌이 드는 건 어쩔수 없는듯 합니다.

비밀리에 FF 바디가 발표라도 되기 전까지는 "스스로 무덤을 파고 있다" 라는 일본이나 우리나라 의 분위기는 사라지지 않을듯 하군요 .

아래는 바디의 사양입니다.
무게와 성능에 있어서는 제가 쓰는 K10D 보다 좋은듯 합니다.

Product Features

    * Built for the tough everyday photography
    * 10.2 Megapixels resolution CCD
    * ISO100-3200
    * 3.5fps Continuous Shooting
    * Reliable dust prevention, detection and removal system against dust on the sensor
    * PENTAX "Shake Reduction" integrated into the camera body is usable with any Pentax lens
    * Help function
    * picture modes and automatic functions set the camera easily for each photograph situation
    * 2.7" LCD
    * Supplied with: DA L 18-55mm and 50-200mm zoom lens


Technical Details

CCD
10.75 Megapixels – total
10.2 Megapixels – effective
23.5x15.7mm Interline Interlace CCD with primary colour filter
Colour depth: 3 x 12 Bit in RAW, 3 x 8 Bit in JPEG (internal 3 x 22 bit)

Resolution:
- JPEG: (JPEG Baseline in quality steps of Optimal, Better, Good)
10 MP (3,872 x 2,592), 6 MP (3,008 x 2,000), 2 MP (1,824 x 1,216)
- RAW: 10 MP (3,872 x 2,592)
Sensitivity: Automatic, Manual selectable (ISO 100, 200, 400, 800, 1,600,3,200)

Lens
PENTAX KAF2 bayonet
Compatible with PENTAX KAF2-, KAF- and KA- lens mounts. Support for KAF2 Power Zoom functions
(K-mount lenses – with adapters – M42 and medium format lenses are mechanically compatible. Due to the high resolution of camera and lack of electronic contacts on the lenses no general statement can be made regarding full compatibility of functions.)

Viewfinder
Built-in, non-interchangeable Pentamirror finder
Viewing area 96% with finder magnification of 0.85x (with 50mm f/1.4 lens at infinity, -1m–1)
Bright non-interchangeable “Natural Bright II� focusing screen
Viewfinder indications below image area
Dioptre correction -2.5 dpt. – +1.5 dpt.

Monitor
2.7� low-temperature polysilicon TFT Monitor with 230,000 dots, brightness adjustment and wide viewing angle (approx. 160°)
Image previewing with image preview switch (stop down button)
Image view after recording: Single image, double image, Histogram, recording data and Hot Spot Warning, 16x enlargement, Thumbnail index (4, 9 or 16), slide show, image rotation

Preview
Depth-of-field preview button for focus depth preview, digital preview

Image Formats
RAW (PEF, DNG), RAW + JPEG
JPEG (Exif 2.21), DCF
JPEG compression: JPEG Baseline in quality steps of Optimal, Better, Good

Memory
SD Card, SDHC Card

Focus
Autofocus system: TTL Phase Matching with 5 focussing points (SAFOX) with indication in finder
Operational range: (EV 1 – EV 19)
AF Single with focus lock or continuous AF (as a function of the exposure program)
Focussing point selectable between automatic or manual choice, spot focussing
AF-Assist with built-in flash

Metering
16 segment TTL open aperture metering coupled with AF and lens information, switchable between Multi segment, Centre weighted and Spot metering.
Operational range: EV 1 – EV 21
Electronically controlled vertical-run focal plane shutter
Shutter speeds: Automatic: 1/4,000 – 30sec. (stepless), Manual: 1/4,000 – 30sec. (in 0.5 EV steps) and Bulb
Flash sync: 1/180sec.
Green Mode, Programmed automatic (Hyperprogram), Sensitivity Priority, Aperture Priority, Shutter Priority, ISO Automatic, Manual, long exposure
Picture Modes (automatic or manual): Portrait, Landscape, Macro, Sport, Night portrait, Flash Off
Scene Modes: Night scene, Surf & Snow, Food, Sunset, Kids, Pets, Candle light, Museum
Exposure compensation: +/- 2EV (1/3 or 1/2 steps)
Auto bracketing: +/-0.5 EV, +/-1.0 EV, +/-1.5 EV in 0.5 EV steps, or +/-0.3 EV, +/-0.7 EV, +/-1.0 EV, in 0.3 EV steps
Exposure memory button

Flash
Built-in P-TTL automatic flash with automatic operation in poor lighting conditions
Manual on / manual off
Preflash for reduction of the “Red Eye� effect
Flash compensation (±2 EV)
GN 13 at ISO 100
Hotshoe on camera top for use of system flashes
High-Speed Wireless Synchronisation with appropriate PENTAX flashes
Coverage 28mm (equivalent in 35mm film format)

Power requirements
4x AA batteries (Lithium, Alkaline, Ni-MH)
Battery capacity: approx. 1,650 images or approx. 1000 images (50% with flash) or approx. 750 min. playback
AC adapter (optionally available)

Connections
USB 2.0 (High Speed)
AV (compatible with NTSC and PAL)
AC adapter (optionally available adapter)

Recording parameters
White Balance: Automatic or manual. Daylight, Shade, Cloudy, Tungsten, Neon (W, N, D), Flash, manual balance, 3 selectable settings for Kelvin and Mired Value with fine adjust
Digital filters: BW, Sepia, Colour (18 options), Soft filter and Slim Filter, HDR (3 options)
Drive Modes: Single, Series (Hi/Low): 2.8fps. to 4 images in JPEG (Hi), 1.1fps to capacity of memory card (Low). 4 images in RAW (DNG). Auto Bracketing, Self-timer with 2sec. delay (mirror up lock) and 12sec. delay, IR Remote Control, series.

Special features
PENTAX developed opto/mechanical “Shake Reduction� (integrated in camera body). Adds approx. 4 stops to hand-held shots (for long exposures a tripod should be used).
3 step “Dust Removal� system:
1. Special coating of Low Pass Filter,
2. Vibration system to remove dust,
3. Adhesive strip to capture dust
“Dust Alert�: remaining persistent dust on the sensor is clearly located and the position is indicated on the monitor
Compatible with ultrasonic lenses
Camera internal file designation switchable between standard files or date
Extended exposure functions via eight Scenes Mode programs
Switchable between digital preview on the monitor or optical depth-of-field preview in viewfinder
23 individually adaptable camera functions
Metal chassis with fibre-reinforced plastic housing
Weather-proofed body construction with 60 seals protecting against dust and spray
World time for 72 cities in 28 time zones
Menu languages: English, French, German, Danish, Swedish, Finnish, Dutch, Spanish, Portuguese, Italian, Polish, Czech, Hungarian, Turkish, Russian, Korean, Chinese, Thai, Japanese

Print Functions
PictBridge, DPOF (Digital Print Order Form), PRINT Image Matching III

System requirements
Integrated USB connector
PC: Windows XP, Windows Vista
- CPU: Pentium IV or newer
- Memory: minimum 512MB
- Free hard drive space: 1GB or more
- Monitor resolution: 1,280 x 1,024 or more
Mac OS X 10.2 or higher
- CPU: POWER PC G5 or newer
- Memory: minimum 512MB
- Free hard drive space: 1GB or more
- Monitor resolution: 1,280 x 1,024 or more

Software
PENTAX PHOTO Browser 3/PENTAX PHOTO Laboratory 3 with integrated RAW converter

LENS 1 - 18-55mm DAL zoom Lens
Lens mount - PENTAX KAF-Bayonet
Angle of view - 76 – 29°
Construction - 11 elements / 8 groups
Aperture control - Automatic
Smallest aperture - 22 – 38
Metering - TTL open aperture Metering
Minimum focusing distance - 0.25m – ∞
Magnification - approx. 1:2.9 (0.34x)
Filter size - 52mm

LENS 2 - 50-200mm DAL zoom lens
Lens mount - PENTAX KAF-Bayonet
Angle of view – 31.5° to 8.1°
Construction - 11 elements / 10 groups
Aperture control – Automatic
Smallest aperture – 22-32
Metering - TTL open aperture Metering
Minimum focusing distance – 1.1m – ∞
Magnification - approx. 1:4.2 (0.24x)
Filter size - 52mm
